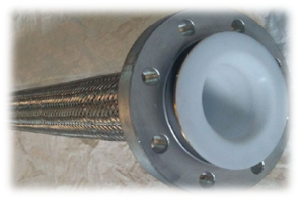

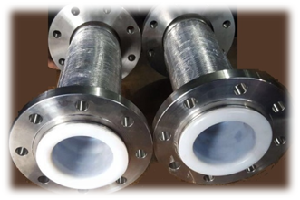

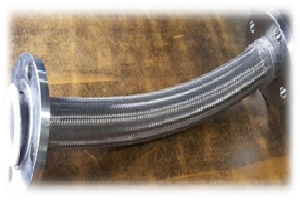

PTFE Braided Hose Assemblies

Om Flexibles Offered Wide Ranges Of Ptfe Hose Assemblies As Per The Customer Design Specifications.

PTFE Braided Hose with ability for chemically resistant material known hence making it the ideal choice for very corrosive chemical applications and multi-product industrial applications.

PTFE Braided Hose assemblies can resist temperatures ranges from -70 to +230 degrees centigrade depending on application.

PTFE Braided Hose Assemblies can be available in following PTFE hose configurations:-

1.Smooth Bore Ptfe Hose Assemblies

• Smooth bore is available with a Single or Double 304 stainless steel wire braid.

• All our hose assemblies are available with a various range of crimped end connections.

• Bore sizes range from 1/8 to 1”nb.

2.Convoluted Bore Ptfe Hose Assemblies

• Convoluted PTFE lined which gives excellent flexibility, available with stainless steel SS 304 wire braid.

• As with smooth bore hose assemblies are available with a wide range of end connections. Bore sizes range from 3/8”NB to 2”NB.

• Convoluted is resistant to full vacuum up to 1”NB up to 130 degrees centigrade with a stainless steel braid.
